The key element to the Patented Silca System is the Grate. This is the 400x450x38mm structural component that screws direct to the timber or aluminium deck frame and provides the solid flat surface on which to lay almost any kind of paving.

Silca Grates feature:

• a) strengthening ribs and hex cells to spread and transfer load across the decking element and down onto the joist.
• b) pre-formed countersunk holes designed to guide the screws into the joist at the correct position. (remember to not overtighten screws as this can damage the countersink)
• c) a second row of fixing so grates can be uniformly trimmed to slot in between joists should more height clearance be required. (This requires extra timbers clashed to the side of the joist for the grate to sit on.)
• d) free draining design for minimum moisture retention
• e) micro flex to absorb any movement within the decking element and reduce risk of any tile or grout disturbance
• f) UV stable
• g) manufactured from 100% recycled materials. Green Building Product

RRP: NZD $31.18 incl. gst each

Trade pricing available. Please contact us for a site-specific quote.

Lock Connectors specifically designed for use with the Grates. These interlock each Silca Grate to the next on all four sides. X2 Connectors per side. (3.3 per grate) and greatly increase rigidity and consistency across the system, resulting in an incredibly strong, continuous decking element. They also provide some added spot adhesion points for during tile install. Simply push down the connectors into the designated slots in each side of the Grate, then knock in tight with a hammer. We specify using Lock Connectors when Grates are installed over any floating frame, typically over membrane. For over solid timber deck frame they are not 100% required, however still greatly increase strength, stability and rigidity to the decking element.

RRP: NZD $1.89 incl. gst each

Trade pricing available. Please contact us for a site-specific quote.

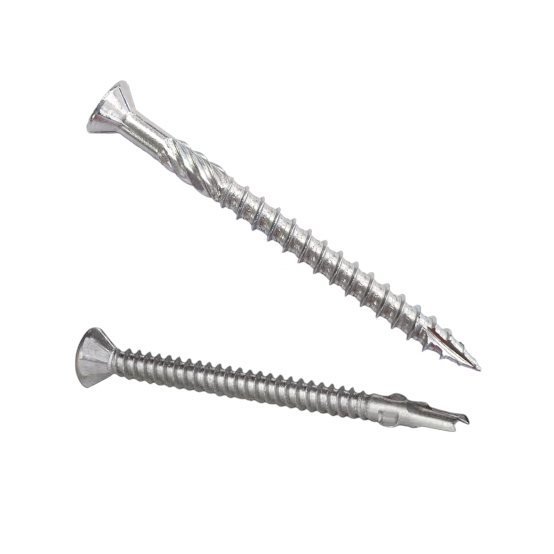

Stainless Steel screws for fixing the grates to the joists of the deck substructure. x6 Screws per Grate, these are designed to seat perfectly into the predesignated, countersunk holes at the edges of the Silca Grates. We can supply both timber thread for timber joist and wingtip self-drilling screws for aluminium joist.

A snug fit for sure.

RRP: NZD $328.74 incl. gst (1000 Box)

Trade pricing available. Please contact us for a site-specific quote.

For spot glue adhesion of tile and pavers direct to the Silca Grates. SabreBond SMP45 is a high grade multipurpose adhesive that boasts extremely high flexibility for demanding applications. It is suited for both industrial bonding and sealing applications, and specialised construction sealing. It has a wide adhesion range to most construction materials, including most metals, timber and most plastics.

Available in 600 ml sausage.

RRP: NZD $33.45 incl. gst each

Trade pricing available. Please contact us for a site-specific quote.

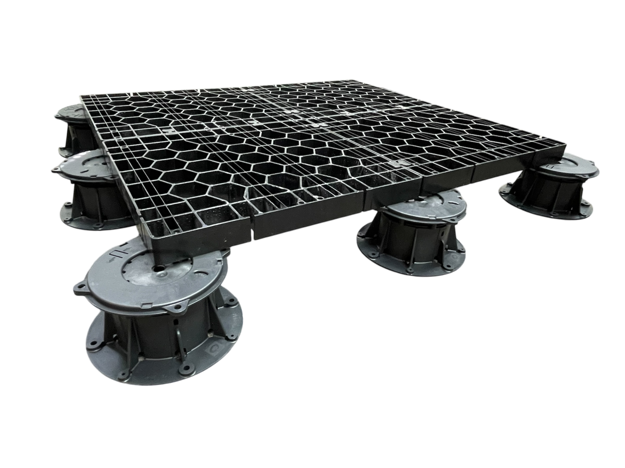

Silca System installed direct on adjustable pedestal, now optimised for over-membrane applications. Suited for both residential and commercial environments. It supports various non-structural surface materials such as natural stone, terrazzo tile, porcelain, or artificial turf. Key benefits using Silca System Products include direct installation on adjustable pedestals, support for non-structural surface materials, flexible supply or supply and install package options. The system is super durable, quick to install and has a high load-bearing capacity. Meets standards for structural and durability performance, ensuring compliance with AS/NZS1170.1 and E2/AS1 standards. Level entry through threshold.

We recommend using Silca I-Lock Connectors when Grates are installed over any floating frame or pedestal.

Trade pricing available. Please contact us for a site-specific quote.
